High stability, 7x24 hours without downtime, using fanless CPU processor with low power consumption and high stability High reliability, no handling errors are allowed, and strict tests are passed With self-recovery function, to deal with unexpected situations, such as uninterrupted disconnection and shutdown for a long time Communication interface suitable for industrial use, easy to expand Adapt to the industrial complex and harsh environment, such as strong, shockproof, moisture-proof, dust-proof, high temperature resistance Simple and easy secondary development, multi-platform, multi-language support, providing routines1.Parameters

Product model	WAR-101C-RN00
Basic parameters	l CPU：Quad-core Cortex-A17 ;  Frequency 1.6GHzl GPU: Quad-core ARM Mali-T764 l Memory：2GB DDR3 l EMMC：8GB EMMC
Display screen	l Size：10.1 inchl Resolution：1280 x800 l Wide-temperature type，16000k colors or 24-bit true colors l LED backlight：lifetime > 25000 h
Touch screen	Capacitance touch screen（Hardness 1H）
Hardware interface	l 4 channel 3-wire RS-232 serial port （COM1~COM4）（3.81mm port）.l 3 channel RS-485（COM1,COM2,COM5）, multiplexing with RS-232 ( COM1/COM2 ) (3.81mm port). l 1 channel USB Device interface，support ADB connect to PC to exchange date and debug application . l 3 channel USB Host interface, support usual USB device such as mouse, keyboard, U disk ,etc. l 1 channel 1000M Ethernet interface. l 1 channel SD/MMC slot,support TF and MMC card. l 1 channel 3.5mm Audio HPC round-hole interface. l 8 channel IO port ( Customize input and output ). l 1 channel HDMI interface. ( Optional ). l 1 channel PH2.54 Audio MIC interface (optional). l 1 channel PH2.54 External Power Amplifier  (8Ω/3W)  (optional). l  1 channel CAN (optional) (3.81mm port), multiplexing with RS-485 (COM5). l 1 channel EDG3.5-3P(12~24V) Power iuput interface. l Built-in WIFI ,4G , BT  (optional) .
Attention	When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication.
OS	Android 8.1.0
Defend degree	/
Working environment	l power：DC 12~24V 20Wl working temperature：-10~60℃ l storage temperature：-20~70℃ l working humidity：10～90%RH
Size	l Caselessl Size ：249x154x27（mm）
Application area	l industrial control，detection device，instruments and meters，security monitoring，medical apparatus and instruments, intelligent terminals embedded high-end application.l Support CAN bus network deployment.
Software support	l Support Eclipse、Android Studio、QT Creator、Visual Studio 2015/2017 development，support JAVA/C/C++/C# ,etc .  Linux support Eclipse, QT Creator, arm Linux GCC /g++ compiler, shell programming, STL library, python2.7 development, support JAVA/C/C++/C# and other languages .l Easy change the user-defined splash screen.

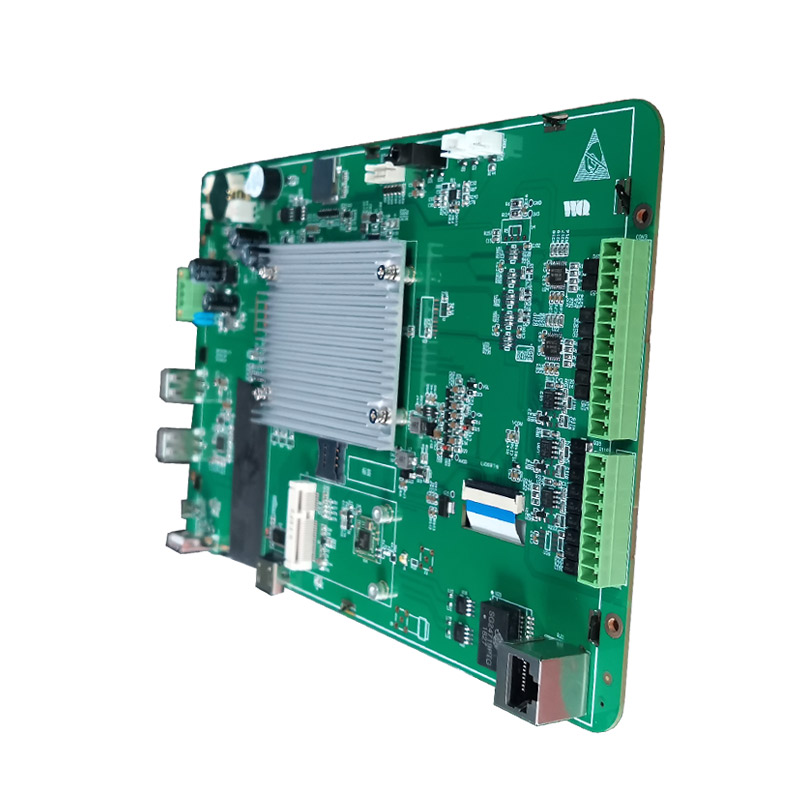

2. Interface definition3. Exterior size Exterior size：254x168x33.5（mm）     Trepanning size：235x110（mm）

1  1000M Ethernet	2   USB Device
3  Boot Button	4   HDMI interface
5  TF card interface	6   SIM card interface
7  USB Host 2.0	8   EDG3.5-3P Power interface

9   Antenna interface	10  Audio interface
11  CAN+RS-485 (COM3、COM4)	12  RS-232 (COM1~COM4)
13  USB Host x2	14  Dormancy switch
