High stability, 7x24 hours without downtime, using fanless CPU processor with low power consumption and high stability High reliability, no handling errors are allowed, and strict tests are passed With self-recovery function, to deal with unexpected situations, such as uninterrupted disconnection and shutdown for a long time Communication interface suitable for industrial use, easy to expand Adapt to the industrial complex and harsh environment, such as strong, shockproof, moisture-proof, dust-proof, high temperature resistance Simple and easy secondary development, multi-platform, multi-language support, providing routines1. Parameters

Product model	WAR-101C-RM10
Basic parameters	● CPU：Dual Cortex®-A72 large core + Quad Cortex-A53 small core● Frequency 1.8GHz ● GPU: Quad-core ARM Mali-T860 ● Memory：2GB DDR4  (4G as option) ● EMMC：8GB EMMC  (16G as option)
Display screen	● Size：10.1 inch ● Resolution：800 x1280 ● Wide-temperature type，16000k colors or 24-bit true colors ● LED backlight：lifetime > 25000 h
Touch screen	Capacitance touch screen
Hardware interface	● 1 channel DB9 interface (COM7). ● 1 channel RS-485 interface (COM6) or 1 channel RS-232 (COM8). ● 1 channe. ● HDMI interface. ● 1 channel USB Device interface，support ADB connect to PC to exchange date and debug application. ● 1 channel USB Host 3.0 interface, support usual USB device such as mouse, keyboard, U disk ,etc. ● 2 channel USB Host 2.0 interface, support usual USB device such as mouse, keyboard, U disk ,etc. ● 1 channel 1000M Ethernet interface. ● 1 channel SD/MMC slot,support TF card. ● 1 channel SIM card interface. ● 1 channel 3.5 audio interface. ● 1 channel WIFI. ● 1 channel DC 5.5-2.1 (DC 12V ) Power Iuput interface. ● 1 channel Power Button switch. ● Built-in 4G Module  (optional).
Attention	When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication.
OS	Android 7.1.2
Defend degree	IP65 (front panel)
Working environment	● power：DC 12V/2A ● working temperature：-10~60℃ ● storage temperature：-20~80℃ ● working humidity：10～90%RH
Size	● shell structure：Metal ● panel size：260×175x45 (mm） ● trepanning size：252.2×167.2 (mm）
Application area	● industrial control，detection device，instruments and meters，security monitoring，medical apparatus and instruments, intelligent terminals embedded high-end application.
Software support	● Support Eclipse、Android Studio、QT Creator、Visual Studio 2015/2017 development，support JAVA/C/C++/C# ,etc . ● Easy change the user-defined splash screen.

2. Interface definition3. Exterior size Exterior size：260×175×45（mm）     Trepanning size：252.2×167.2（mm）

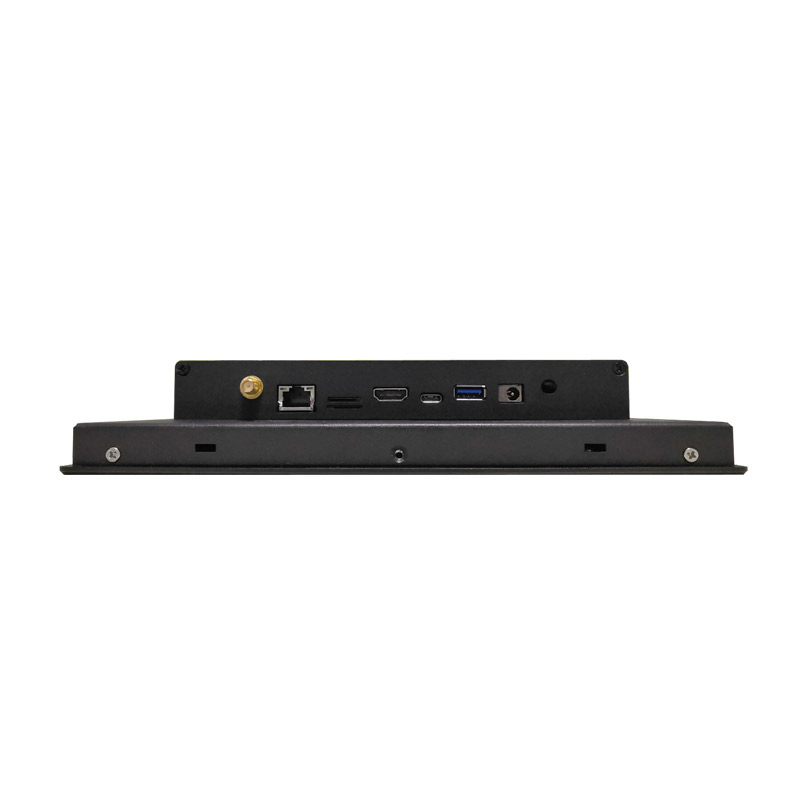

1  WIFI Antenna interface	2  1000M Ethernet interface
3  SIM card interface	4  TF card interface
5  HDMI interface	6  USB slave interface （USB Device）
7  USB 3.0（USB host）	8  Power interface
9  4G Antenna interface

10   Built-in speaker (optional)	11  RS-485 (COM6) or RS-232（COM8）
12  DB9-RS-232（COM7）	13  USB Host x2pcs
14  Audio interface	15  Power button switch

2.1 RS-232 interface 1 channel RS-232 serial port，support the highest-level baudrate 115200bps. The corresponding port  in Android system is COM7. 2.2 RS-485 interface The corresponding port in Android system is COM6 . Or RS-232 interface (COM8) is available .
