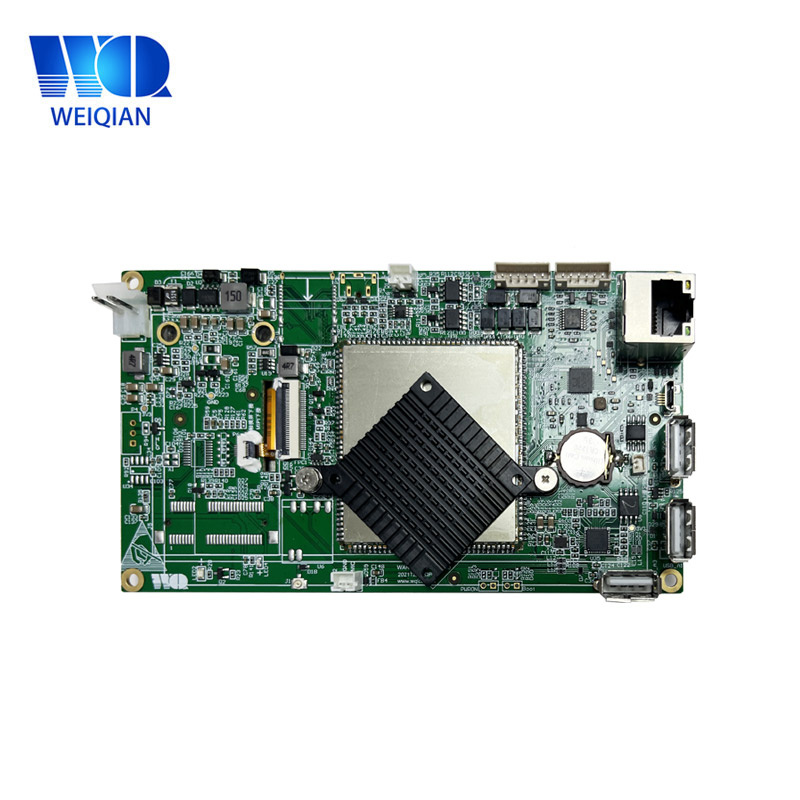

| Product model | WAR-050C-IN10 |
| Basic parameters | CPU：Quad-core Cortex®-A7 architecture; Frequency 1.2GHzMemory：1GB DDR3Flash：8GB |
| Display screen | Size：5 inchResolution：480×854 Wide-temperature type，16000k colors or 24-bit true colorsLED backlight：lifetime > 25000 hours |
| Touch screen | Capacitance touch screen |
| Hardware interface | 2 channel 3-wire RS-232 serial port（COM1,COM2）2 channel RS-485 interface（COM5,COM6）.1 channel USB Device interface，support ADB connect to PC to exchange date and debug application .3 channel USB Host interface, support usual USB device such as mouse, keyboard, U disk ,etc.1 channel 100M Ethernet interface.1 channel 3.5mm Audio interface .1 channel PH2.0 MIC interface （optional）.1 channel PH2.0-2 amplifier interface （optional）.1 channel WIFI interface （optional）.1 channel 4G module interface （optional）.1 channel CAN interface (P4)（optional）.1 channel SD/MMC slot,support TF card.1 channel DC 12V~24V power. |
| Attention | When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication. |
| OS | Android 7.1.1 |
| Defend degree | / |
| Working environment | Power：DC 12V-24V （24V as recommendation)Working temperature：-10~50℃ Storage temperature：-20~80℃Working humidity：10～90%RH |
| Size | No CaseSize：145.2×80.9×24.2 （mm） |
| Application area | Industrial control，detection device，instruments and meters，security monitoring，medical apparatus and instruments, intelligent terminals embedded high-end application.Support CAN bus network deployment. |
| Software support | Support Eclipse、Android Studio、QT Creator、Visual Studio 2015/2017 development，support JAVA/C/C++/C# ,etc .Easy change the user-defined splash screen. |
| Attention | Precautions for use of Weiqian caseless products (PCB bare products) 1: When using non-shell products (PCB bare products), you must wear electrostatic bracelets (such as the construction environment cannot wear electrostatic bracelets. Use ESD gloves and touch the static electricity on the body, such as the iron door. Otherwise, it is easy to damage the product directly or damage the product after a period of use; 2: When using non-shell products (PCB exposed products), pay attention to prevent knock, because PCB exposed, knock easy to damage components; 3: When using caseless products (PCB exposed products), pay attention to the cleaning of the environment, do not let water or metal debris (such as the debris generated by cutting wire) contact the product, so as to avoid short circuit damage to the product; 4: Use caseless products (PCB bare products) design of the whole product, the whole product should pay attention to waterproof and dustproof (it is better to consider the design of the whole product waterproof and dustproof); 5: When using caseless products (PCB bare products), do not deform PCB or damage PCB fixing holes when installing fixing screws, so as to avoid short circuit or damage of PCB inner layer components; |
Exterior size：145.2×80.9×24.2（mm） Trepanning size：125.5×77.8 （mm）
