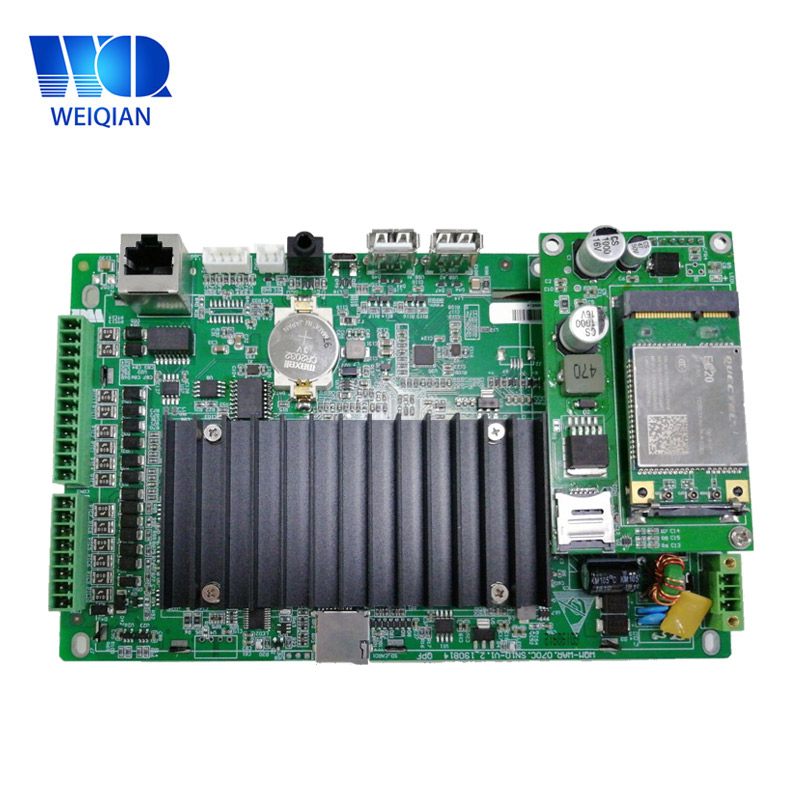

| Product model | WAR-070C(R)-SN10 |
| Basic parameters | CPU：Quad-core Cortex®-A9 architecture；Frequency 1.4GHzMemory：1GB DDR3Flash：8GB |
| Display screen | Size：7 inchResolution：1024×600Wide-temperature type，16000k colors or 24 bit true colorsLED backlight：lifetime > 25000 hours |
| Touch screen | Capacitance /Resistance touch screen |
| Hardware interface | 4 channel 3-wire RS-232 serial port（COM1,COM2,COM3,COM4）（Isolation as optional）2 channel RS-485 interface（COM1、COM2）,multiplexing with RS-232 (COM1、COM2) （Isolation as optional）1 channel isolated CAN bus interface. (optional)1 channel USB Device interface，support ADB connect to PC to exchange data and debug application.2 channel USB Host interface，support usual USB device such as mouse, keyboard, U disk ,etc.1 channel 100M Ethernet interface.1 channel SD/MMC slot, support mini SD /MMC card.1 channel 3.5mm earphone output interface.1 channel external speaker interface(power amplifier 8Ω2w )（optional）1 channel 2EDG3.5 DC12V~24V Power interface .( Optional : WIFI / 4G / WIFI +Bluetooth ). |
| Attention | When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication. |
| OS | Android 4.4.2/Android 5.1 |
| Defend degree | / |
| Working environment | power：DC 12V-24V （24V as recommendation)working temperature：-10~60℃ storage temperature：-20~80℃working humidity：10～90%RH |
| Size | No shellSize：188×117×41 （mm） |
| Application area | industrial control，detection device，instruments and meters，security monitoring，medical apparatus and instruments, intelligent terminals embedded high-end application.Support CAN bus network deployment. |
| Software support | Support Eclipse、Android Studio、QT Creator、Visual Studio 2015/2017 development，support JAVA/C/C++/C# ,etc .Easy change the user-defined splash screen. |
