| Product model | WLX-070C-IN10 |
| Basic parameters | CPU： Quad-core Cortex-A7 architecture ; Frequency 1.2GHzMemory：1GB DDR3Flash：8GB Nandflash |

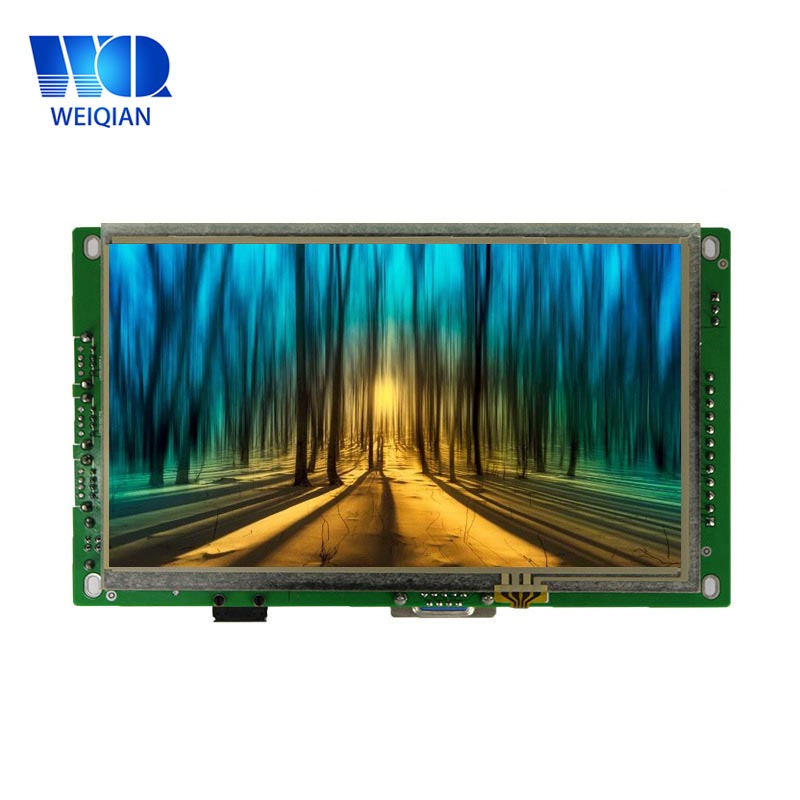

| Display screen | Size: 7 inchResolution：1024×600 Wide-temperature type，16000k colors or 24 true colorsLED backlight：lifetime > 25000 hours |
| Touch screen | Capacitance touch screen |
| Hardware interface | 4 channel RS-232 serial port（COM1,COM2,COM3,COM4） ( TTL as option ) .2 channel RS-485（COM5,COM6）1 channel 1000M Ethernet interface.1 channel USB device interface, support ADB connect to PC to exchange data and debug application.3 channel USB Host interface，support usual USB device such as mouse, keyboard, U disk ,etc.1 channel HDMI interface. ( without optional )1 channel 3.5mm Audio interface.1 channel PH 2.0-4 Power Amplifier interface (8 Ω 2W) ( Optional )1 channel 2EDG3.5 Power Input interface ( DC12V~24V )1 channel SD/MMC slot, support mini SD / MMC card .WIFI ( optional ) |
| Attention | When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication. |
| OS | Linux QT5.9 |
| Defend degree | / |
| Working environment | power：DC 12V-24V （24V as recommendation)working Temperature：-10~50℃ storage temperature：-20~70℃working humidity：10～90%RH |
| Size | No shellsize：188×117×41 （mm） |
| Application area | industrial control，detection device，instruments and meters，security monitoring，medical apparatus and instruments, intelligent terminals embedded high-end application. |
| Software support | Support Eclipse、Android Studio、QT Creator、Visual Studio 2015/2017 development，support JAVA/C/C++/C# ,etc .Easy change the user-defined splash screen. |
