Get Unbeatable Quality And Durability With Our 7 Inch WinCE Industrial Panel PC

Product model	WLT-070R-NP00
Basic parameters	CPU：ARM9 architecture ; Frequency 300MHZMemory: 64MB DDR2Flash：128MB NandFlash
Display screen	Size：7 inchResolution：800×480Wide-temperature type，64K colors or 260K colorsLED backlight：lifetime > 25000 hours
Touch screen	4-wire Resistance touch screen（driver inside）

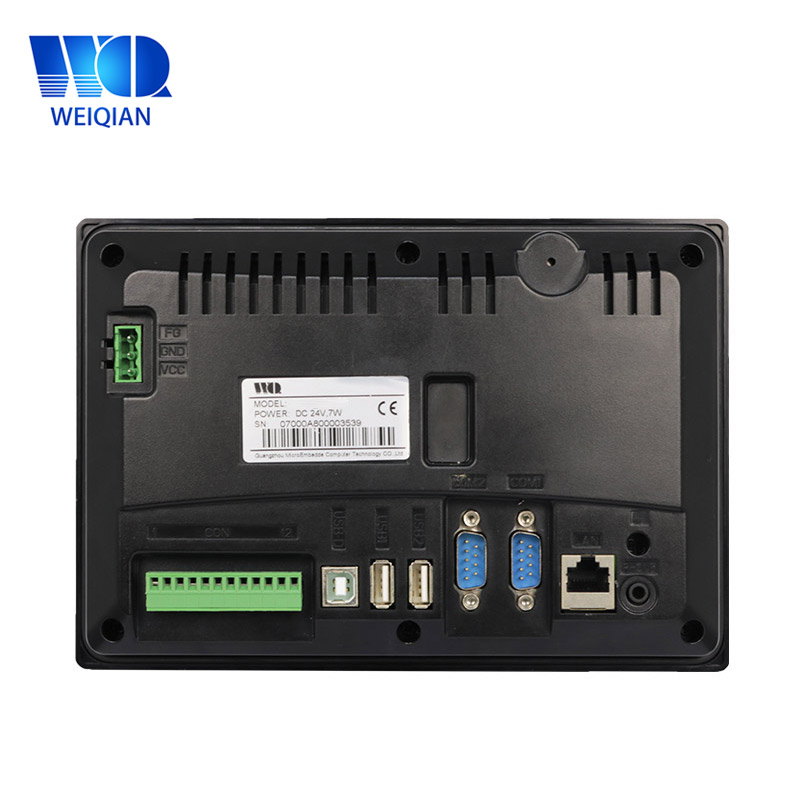

Hardware interface	4 channel 3-wire RS-232 serial port（COM1,COM2,COM5,COM8）.3 channel RS-485 serial port（COM3、COM7、COM9）, COM3 is a multiplexing of CAN, COM3 as standard .1 channel CAN bus, multiplex as COM3（optional）1 channel built-in WIFI module .（optional）1 channel USB device interface，support ActiveSync connect to PC to exchange data and debug application.2 channel USB Host interface，support usual USB device such as mouse, keyboard, U disk ,etc.1 channel 100M Ethernet interface.1 channel SD/MMC slot,support SD/MMC card .1 channel 3.5mm audio output interface.1 channel DC12V~24V Power Input interface .
Attention	When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication.
OS	Windows CE 6.0 R3
Defend degree	IP65 (front panel)
Working Environment	power：12~24V DC（24V as recommendation），600mAworking temperature：-10~60℃ Storage temperature：-20~80℃working humidity：10～90%RH
Size	shell structure：plasticpanel size：206.00×142.00 （mm）trepanning size：195.60×131.60 （mm）
Application area	industrial control，detection device，instruments and meters，security monitoring，medical apparatus and instruments, intelligent terminals embedded high-end application.Support CAN bus network deployment.
Software support	Flash power-down protection function.IDE: Visual Studio 2005/2008.net(.net 2.0 Compact)、EVC++、Labview development.Easy change the user-defined splash screen.Support display screen rotation (degree: 0/90/180/270)

1. COM3-485B (CANL)	2. COM3-485A (CANH)
3. GND	4. COM8-RX of RS-232
5. COM8-TX of RS-232	6. COM5-RX of RS-232
7. COM5-TX of RS-232	8. COM9-485B
9. COM9-485A	10. GND
11. COM7-485B	12. COM7-485A

2.1 RS-232 interface

4 channel serial port, support the highest-level baudrate115200bps. The corresponding interface in WinCE system is COM1、COM2、COM5、COM8.

2.2 RS-485 interface

The corresponding port in WinCE system is COM3、COM7、COM9. And COM3 is a multiplexing of CAN interface. With a 120 ohm(Ω) terminal resistance inside .

2.3 CAN Bus interface

The function of Can-bus interface is optional. COM3 is a multiplexing of CAN interface. 120 ohm(Ω) terminal resistance will be needed additionally for a bus network deployment.
