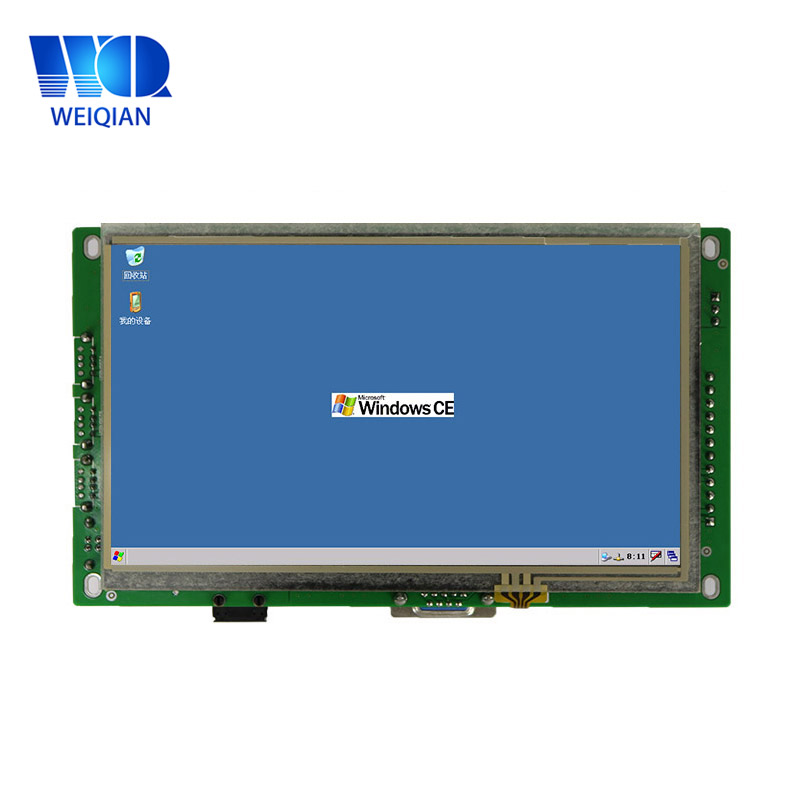

7 inch WinCE Panel PC with Shell-less Module

Products Details

Product model WLT-070R-NN00
Basic parameters CPU:ARM9 architecture ;  Frequency 300MHZMemory: 64MB DDR2Flash:128MB NandFlash
Display screen Size:7 inchResolution:800×480Wide-temperature type,64K colors or 260K colorsLED backlight:lifetime > 25000 hours
Touch screen 4-wire Resistance touch screen(driver inside)
Hardware interface 2 channel 3-wire RS-232 serial port(COM1,COM2)1 channel USB device interface,support ActiveSync connect to PC to exchange data and debug application.1 channel USB Host interface,support usual USB device such as mouse, keyboard, U disk ,etc.1 channel 100M Ethernet interface.1 channel TF slot, support SD/TF card.1 channel DC12V~24V Power Input interface.
OS Windows CE 6.0
Defend degree /
Working Environment Power:12V~24V DC,600mAworking Temperature:-10~60℃    storage temperature:-20~80℃working humidity:10~90%RH
Size No shellpower:12~24Vsize:188x110x29.1 (mm)Trepanning size :167.2x105.5  (mm)
Application area industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent terminals embedded high-end application.
Software support Flash FAT file system protection function.IDE: Visual Studio 2005/2008.net(.net 2.0 Compact), EVC++, Labview development.Easy change the user-defined splash screen.Support display screen rotation (degree: 0/90/180/270)
1.  VCC: DC+12~24V 2. VCC: DC+12~24V
3. GND 4. GND
5. GND 6. COM2-RX of RS-232
7. COM2-TX of RS-232 8. GND
9.   COM1-RX of RS-232 10.  COM1-TX of RS-232
Exterior size:188x110x29.1(mm)           Trepanning size :167.2x105.5(mm)
