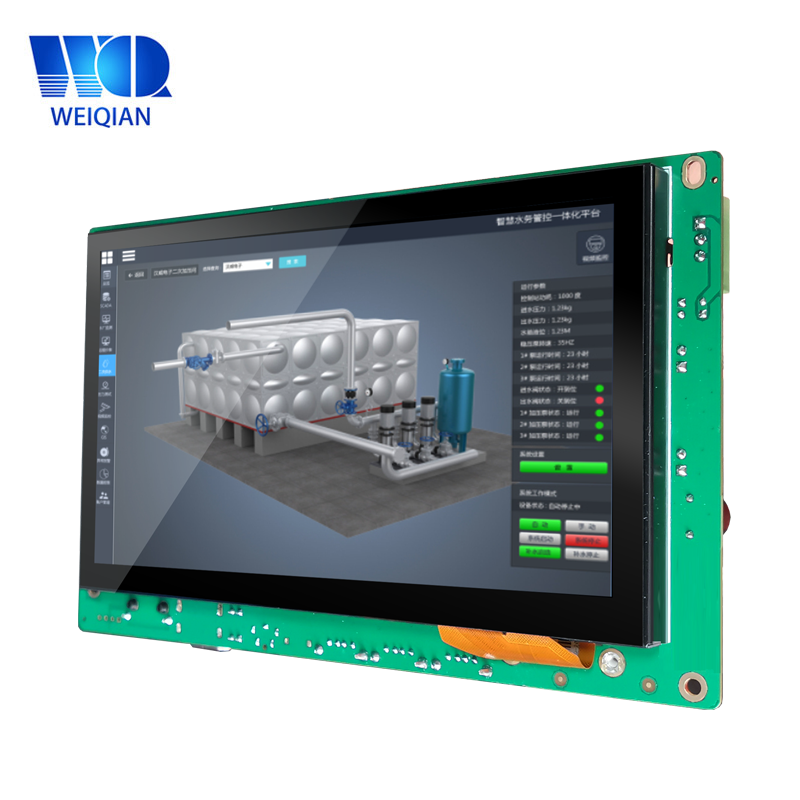

7inch Android Panel PC With Caseless Module

Products Details

Product model WAR-070C (R) -IP10
Basic parameters CPU: Quad-core Cortex-A7 architecture ;  Frequency 1.2GHzMemory:1GB DDR3Flash:8GB NandFlash
Display screen Size:7 inchResolution:1024×600Wide-temperature type,16000k colors or 24 true colorsLED backlight:lifetime > 25000 hours
Touch screen Capacitance touch screen
Hardware interface 4 channel 3-wire RS-232 serial port(COM1,COM2,COM5,COM6)2 channel RS-485(COM3、COM4)1 channel CAN bus(optional).1 channel USB device interface, support ADB connect to PC to exchange data and debug application.2 channel USB Host interface,support usual USB device such as mouse, keyboard, U disk ,etc.1 channel 1000M Ethernet interface.1 channel 3.5mm Audio interface.1 channel SD/MMC slot,support SD/MMC card .1 channel WIFI module (optional). 1 channel Bluetooth module(optional). 1 channel DC12V~24V Power Input interface .
Attention When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication.
OS Android 7.1.1
Defend degree IP65 (front panel)
Working environment power:DC 12V-24V (24V as recommendation)working Temperature:-10~55℃    storage temperature:-20~85℃working humidity:10~90%RH
Size shell structure:plasticpanel size:206.00×142.00 (mm)trepanning size:195.6×131.6 (mm)
Application area industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent terminals embedded high-end application.Support CAN bus network deployment.
Software support Support Eclipse、Android Studio、QT Creator、Visual Studio 2015/2017 development,support JAVA/C/C++/C# ,etc .Easy change the user-defined splash screen.
1 CANL 2 CANH
3 GND 4 RS-232  ( COM6-RX)
5 RS-232  ( COM6-TX) 6 RS-232  ( COM5-RX)
7 RS-232  ( COM5-TX) 8 RS-485  ( COM4-485B)
9 RS-485  ( COM4-485A) 10 GND
11 RS-485  ( COM3-485B) 12 RS-485  ( COM3-485A)
2.1  RS-232 interface 4 channelssupport the highest-level baudrate 115200bps. The corresponding interface in Android system is COM1 COM2COM5 COM6.

2.2  RS-485 interface

The corresponding port in Android system is COM3COM4. Also, without 120 ohm(Ω) terminal resistance inside, pls specify once in need .

2.3  CAN Bus interface

There is a CAN-Bus interface and a CAN-Bus driver. The function of Can-bus interface is optional. Also, without 120 ohm(Ω) terminal resistance inside, pls specify once in need .Exterior size:206×142(mm)            Trepanning size:195.6×131.6(mm)
